Weak acid–strong base titration curve

An example figure from the Titration Curve generator.

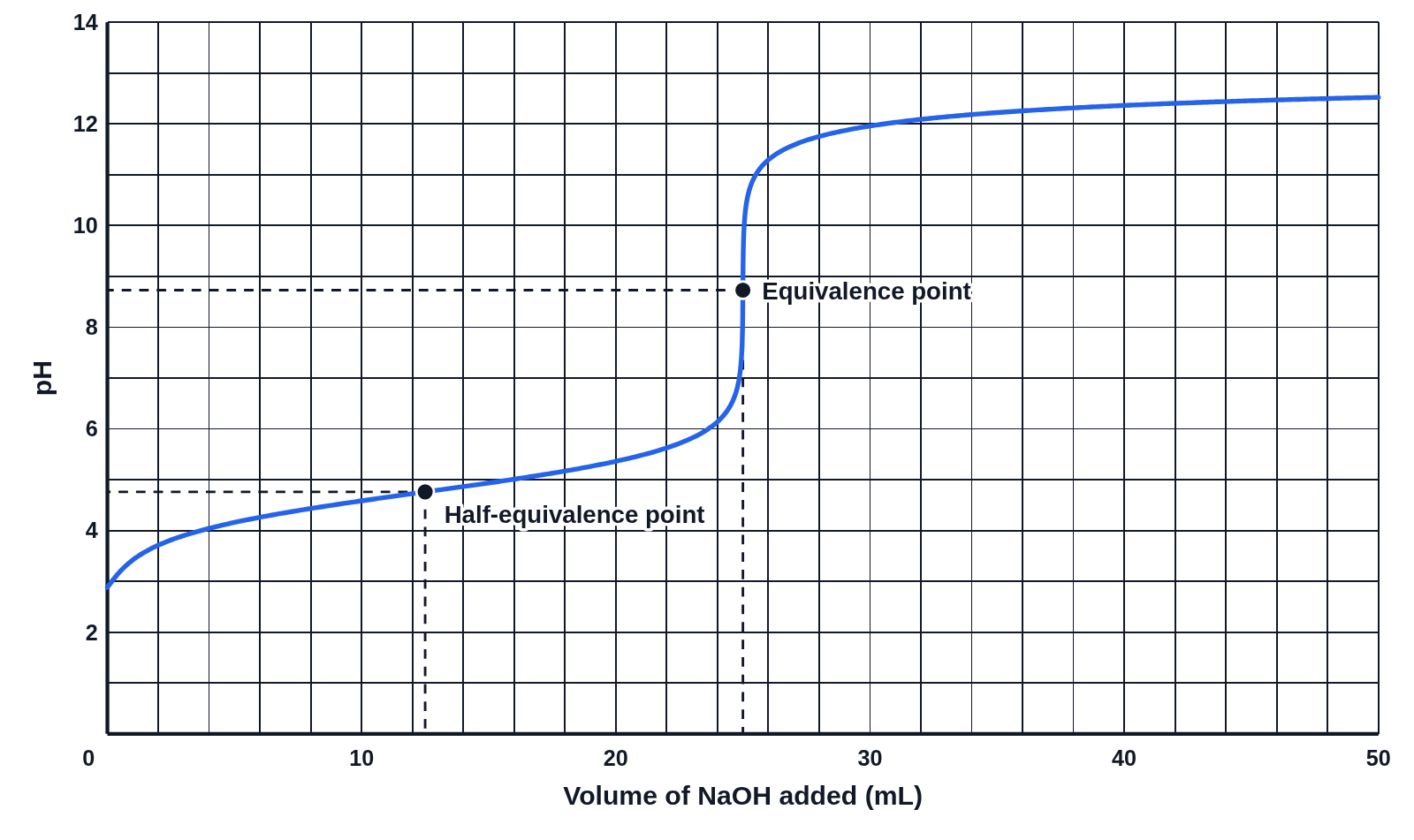

Titration curve of 25.0 mL of 0.100 M acetic acid with 0.100 M NaOH, with the half-equivalence and equivalence points marked — The pH of 25.0 mL of 0.100 M acetic acid (CH₃COOH, pKa 4.76) as 0.100 M NaOH is added, up to 50 mL. The pH rises slowly through the buffer region, then steeply at the equivalence point, 25 mL, which is above pH 7. The half-equivalence point at 12.5 mL is marked too, where the pH equals the pKa.

Edit this figure Download PNG

Editing opens it in Titration Curve with these settings, to change anything and copy or download your own.

Answer key

Starting pH: 2.88
Equivalence point: 25 mL, pH 8.73
Half-equivalence point: 12.5 mL, pH 4.76

Free to use in your tests, worksheets, slides or anything else. Open source under Apache 2.0. How to reuse our figures
