Photoelectron spectrum of calcium on a broken axis, in eV

An example figure from the Photoelectron Spectrum generator.

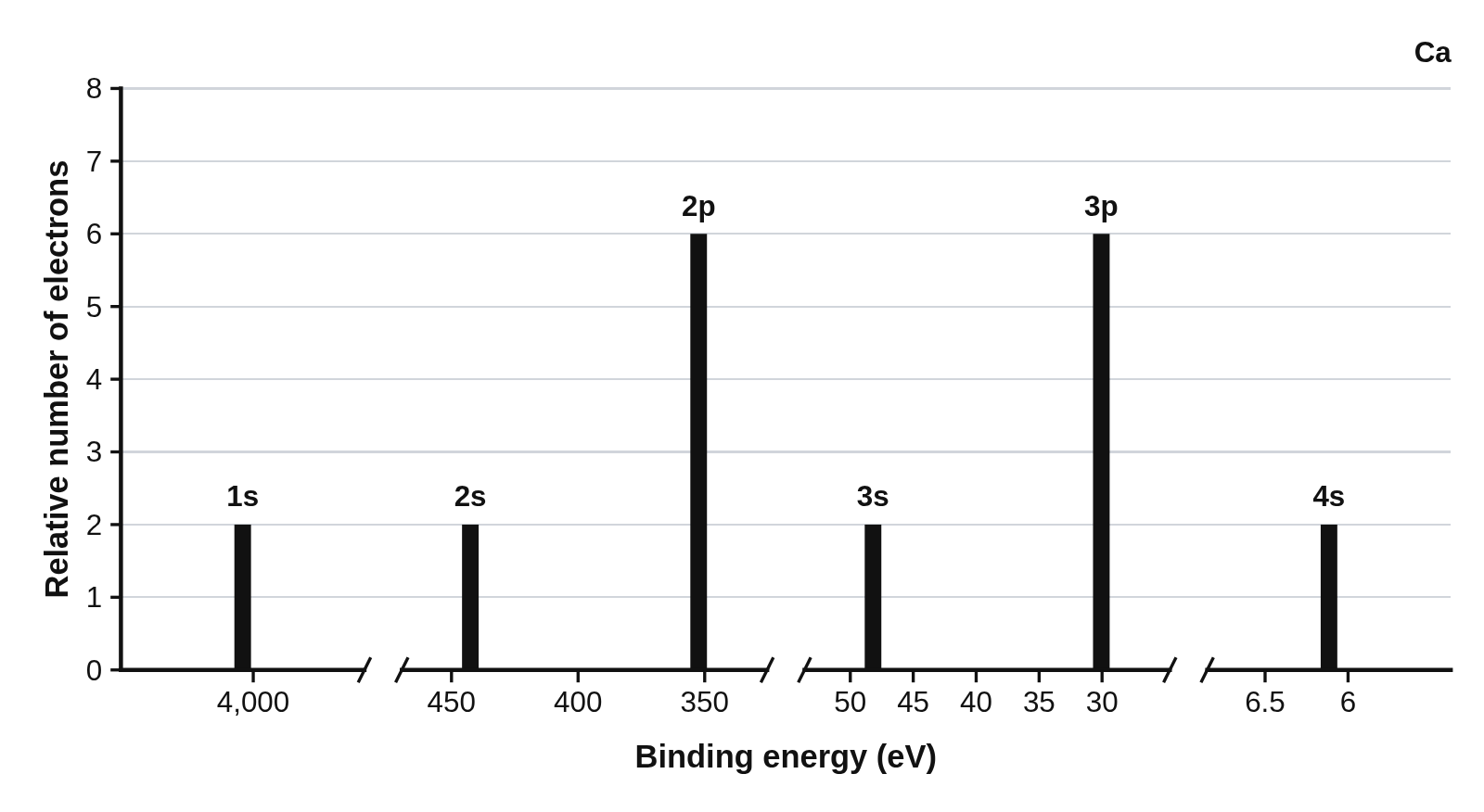

The photoelectron spectrum of calcium drawn as bars on a broken binding energy axis in eV, with six sublevel labels — The photoelectron spectrum of calcium, 1s² 2s² 2p⁶ 3s² 3p⁶ 4s², drawn as bars. The binding energy axis, in electronvolts, is broken into a linear stretch for each group of nearby peaks, with break marks between them, so the core and valence peaks can all be read.

Edit this figure Download PNG

Editing opens it in Photoelectron Spectrum with these settings, to change anything and copy or download your own.

Answer key

Calcium (Ca): 1s² 2s² 2p⁶ 3s² 3p⁶ 4s²
Peaks (eV, left to right): 1s 4,042, 2s 443, 2p 352, 3s 48.2, 3p 30.1, 4s 6.11

Free to use in your tests, worksheets, slides or anything else. Open source under Apache 2.0. How to reuse our figures
