Draw the missing peak: silicon mass spectrum

An example figure from the Mass Spectrum generator.

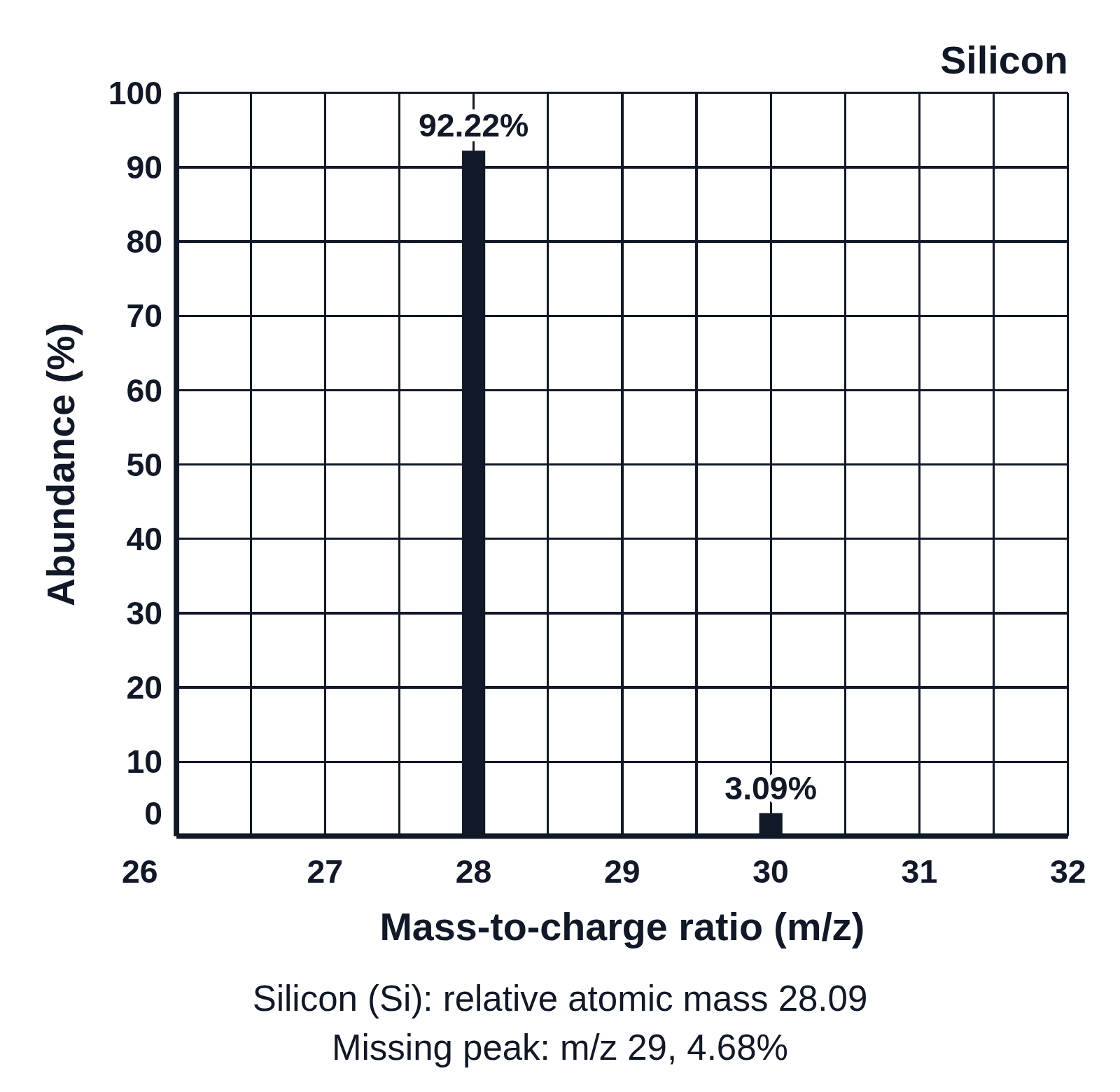

The mass spectrum of silicon with peaks at m/z 28 and 30 and the peak at m/z 29 left out, with an answer key under the graph — The mass spectrum of silicon with its peak at m/z 29 left out, for students to draw in. The peaks at m/z 28 (92.22%) and 30 (3.09%) are shown, so the missing isotope’s abundance is what’s left of 100%. The answer key names the missing peak and gives silicon’s relative atomic mass.

Edit this figure Download PNG

Editing opens it in Mass Spectrum with these settings, to change anything and copy or download your own.

Answer key

Silicon (Si): relative atomic mass 28.09
Missing peak: m/z 29, 4.68%
Relative atomic mass: (27.977 × 92.223 + 28.976 × 4.685 + 29.974 × 3.092) ÷ 100 = 28.09
