Heating curve worksheet: label the melting and boiling points

An example figure from the Heating and Cooling Curve generator.

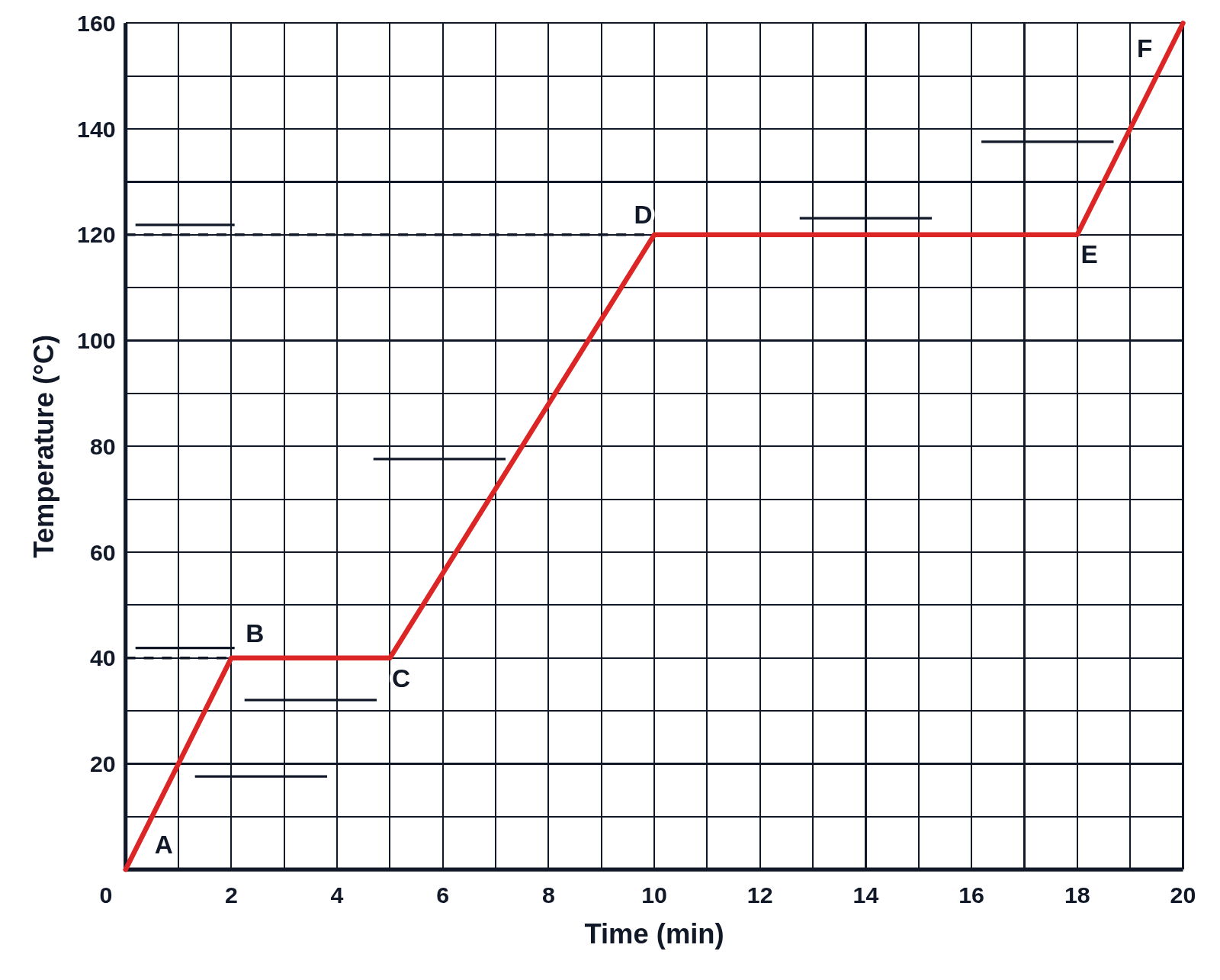

Heating curve of an unknown substance from 0 °C to 160 °C, its corners lettered A to F, with blank lines for the segment labels and by the temperature axis at each plateau — The temperature of an unknown substance, Substance X, heated steadily from 0 °C to 160 °C, against time, with plateaus at 40 °C and 120 °C. Its corners are lettered A to F, and every segment and both plateaus’ dashed lines have blank lines, for students to name each state and change and to mark the melting and boiling points.

Edit this figure Download PNG

Editing opens it in Heating and Cooling Curve with these settings, to change anything and copy or download your own.

Answer key

Substance X: melting point 40 °C, boiling point 120 °C
A–B: Solid warms from 0 °C to 40 °C
B–C: Melting at 40 °C
C–D: Liquid warms from 40 °C to 120 °C
D–E: Boiling at 120 °C
E–F: Gas warms from 120 °C to 160 °C

Free to use in your tests, worksheets, slides or anything else. Open source under Apache 2.0. How to reuse our figures
