Emission spectra of flame test metals: lithium, sodium, strontium and copper

An example figure from the Line Spectrum generator.

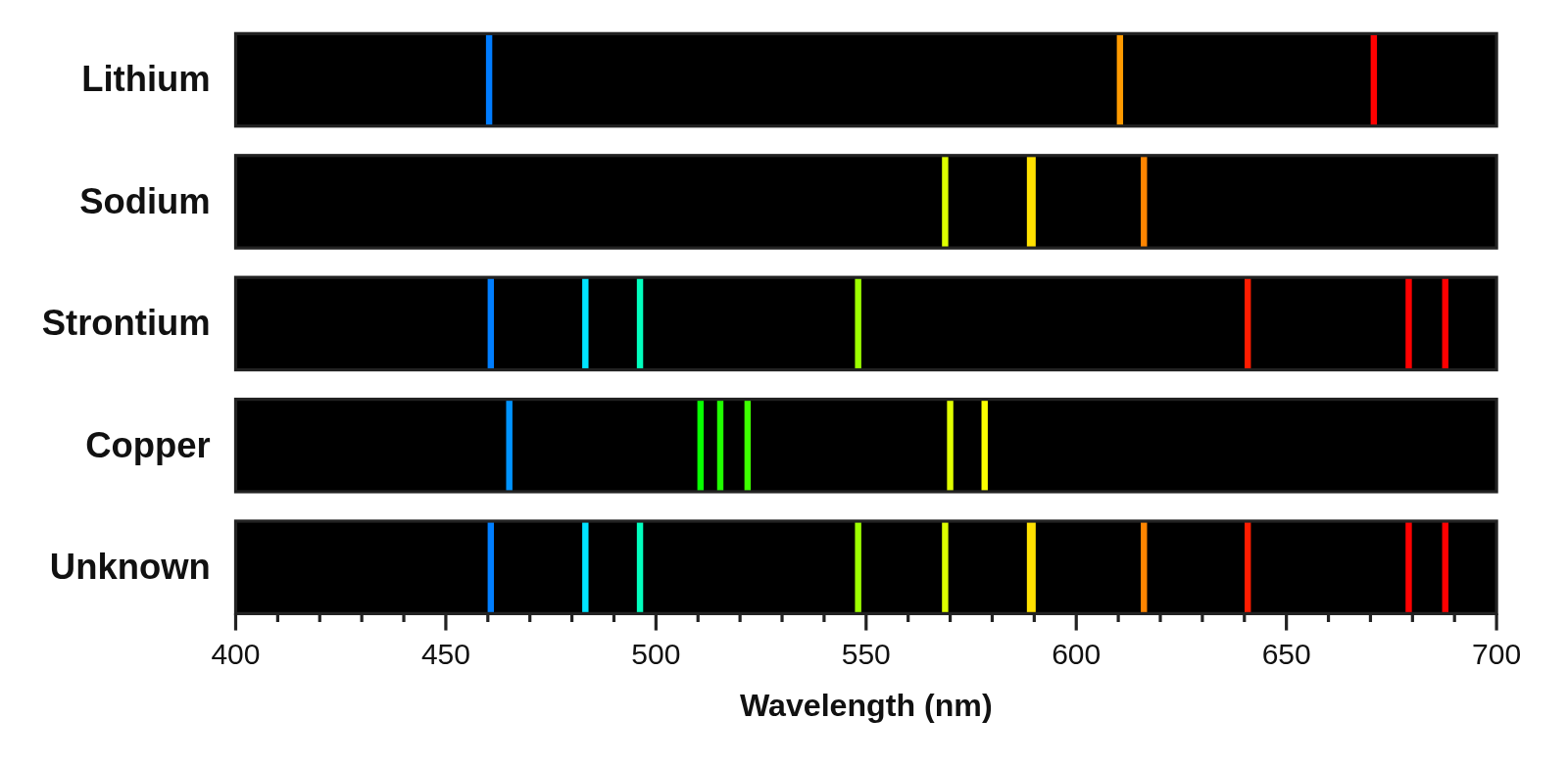

Bright-line emission spectra of lithium, sodium, strontium and copper on one wavelength scale, with an unknown made of two of them — Bright-line emission spectra of four metals used in flame tests, lithium, sodium, strontium and copper, each with a few of its strongest visible lines, on one 400 to 700 nm scale. Under them, an unknown shows every line of sodium and of strontium for students to identify.

Edit this figure Download PNG

Editing opens it in Line Spectrum with these settings, to change anything and copy or download your own.

Answer key

Lithium: 460.3, 610.4, 670.8 nm
Sodium: 568.8, 589.0, 589.6, 616.1 nm
Strontium: 460.7, 483.2, 496.2, 548.1, 640.8, 679.1, 687.8 nm
Copper: 465.1, 510.6, 515.3, 521.8, 570.0, 578.2 nm
Unknown: sodium and strontium

Free to use in your tests, worksheets, slides or anything else. Open source under Apache 2.0. How to reuse our figures
